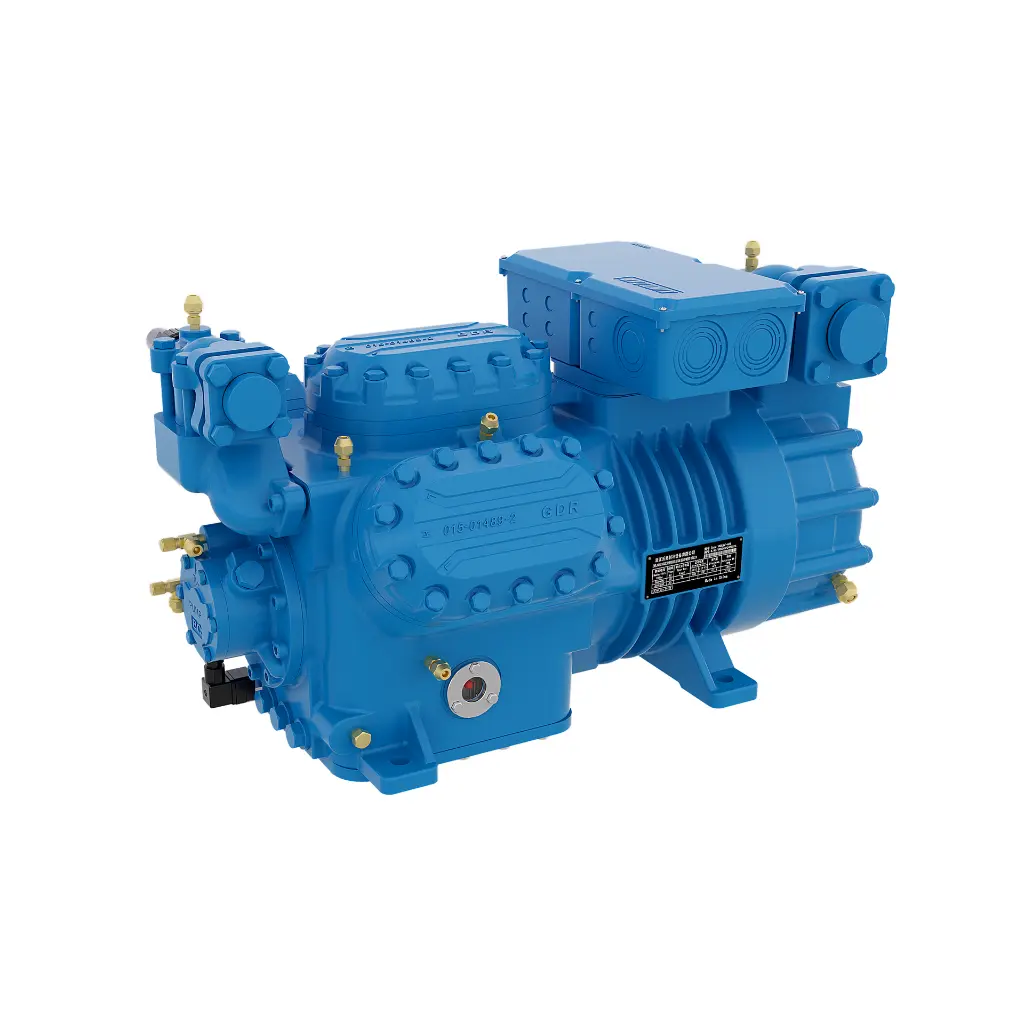

30 HP 6 Cylinders Reciprocating Semi-Hermetic Refrigeration Compressor
Technical Specifications
- Power Supply: 380-420V (50Hz) / 440-480V (60Hz), Y/YY
- Displacement: 126.8 m³/h (50Hz) / 153.0 m³/h (60Hz)
- Cylinder Configuration: 6 x 75mm Bore x 55mm Stroke
- Oil Charge: 4.8 dm³
- Discharge Line: 35mm (1 3/8")
- Suction Line: 54mm (2 1/8")
- Max. Operating Current: 53A
- Max. Power Consumption: 40kW
- Weight: 219kg
- Refrigerants: R22, R134a, R404A, R407A, R407C, R407F, R410A, R448A, R449A, R450A, R507A, R513A, R1234yf, R1234ze
- Optional Equipment: Electronic Oil Pressure Differential Controller, Integrated Oil Level Protector
